Thiet bi chuyen mach HPE JG726A FlexFabric 5930 32QSFP+ Switch
Mo ta san pham: Thiet bi chuyen mach HPE JG726A FlexFabric 5930 32QSFP+ Switch
Thiet bi chuyen mach HPE JG726A duoc thiet ke de hoat dong phu hop ca 3 lop mang (lop truy nhap mang dau cuoi) voi chi phi dau tu la thap trong dong HPE FlexFabric 5930 Switch Series. Thiet bi chuyen mach HPE JG726A cung cap 32 QSFP+ 40GbE ports de ket noi, su dung trong cac mang doanh nghiep vua va nho. Thiet bi chuyen mach HPE JG726A tang cuong bao mat bang cach su dung cac cong nghe virtual LANs, link aggregation, hoac IGMP Snooping boost uplink performance, va loop prevention enhances network reliability. Switch HPE JG726A su dung dien AC 220V.

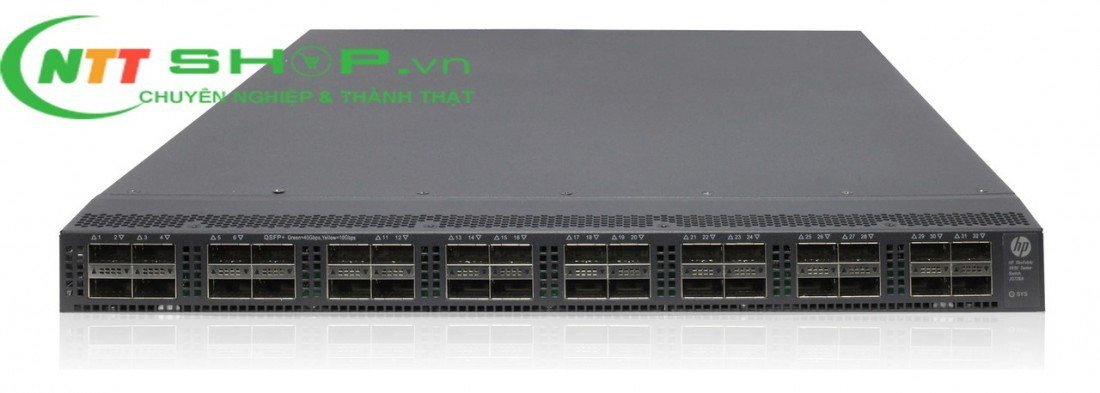

Hinh anh Switch HPE JG726A duoc cnttshop cung cap
Thiet bi chuyen mach HPE JG726A dung cho viec cung cap ket noi mang LAN den cac may tinh lam viec va cac thiet bi can ket noi mang nhu bo phat khong day wifi, may in, may chu, IP camera … Dong switch HPE JG726A tiet kiem chi phi va rat hieu qua cho viec cung cap ket noi mang, voi muc tieu thu nguon dien thap.
Thiet bi chuyen mach HPE JG726A cho phep de dang quan ly ngay ca boi nguoi dung khong biet ky thuat thong qua giao dien Wed truc quan, ho tro HTTP va HTTP Secure (HTTPS)
Thiet bi chuyen mach HPE JG726A duoc thiet ke theo chuan EIA 1U phu hop voi tat ca cac loai tu rack hoac gan tren tuong.
Thong so ky thuat chi tiet cua thiet bi chuyen mach HPE JG726A:
| I/O ports and slots |
32 QSFP+ 40GbE ports
|
| Additional ports and slots |
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
|
| Power supplies |
2 power supply slots
1 minimum power supplies required (ordered separately) |
| Fan tray |
2 fan tray slots
The customer must order fan trays, as fan trays are not included with the switch. This system requires two same-direction airflow fan trays to function properly.
The system should not be operated with only one fan tray for more than 24 hours. The system should not be operated without a fan tray for more than two minutes.
The system should not be operated outside of the temperature range of 32°F (0°C) to 113°F (45°C). Failure to comply with these operating requirements may void the product warranty
|
| Physical characteristics |
Dimensions: 17.32(w) x 25.98(d) x 1.72(h) in (44.00 x 66.0 x 4.36 cm)
Weight: 35.27 lb (16 kg) shipping weight
|
| Memory and processor |
1 GB flash; Packet buffer size: 12.2 MB, 4 GB SDRAM
|
| Mounting and enclosure |
wall, desktop and under table mounting |
| Performance |
10 Gbps Latency < 1µs (64-byte packets)
ThrougHPEut up to 1429 Mpps
Switching capacity: 2560 Gbps
Routing table size 128000 entries (IPv4), 64000 entries (IPv6)
MAC address table size 288000 entries
|
| Environment |
Operating temperature: 32°F to 113°F (0°C to 45°C)
Operating relative humidity: 10% to 90%, noncondensing
Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity:5% to 95% @ 140°F (60°C)
Acoustic: Low-speed fan: 59.8 dB, High-speed fan: 74.4 dB
|
| Electrical characteristics |
Frequency: 50/60 Hz
Maximum heat dissipation 597/1361 BTU/hr (629.83/1435.86 kJ/hr)
Voltage: 100 - 240 VAC, rated -40 to -60 VDC, rated(depending on power supply chosen)
Maximum power rating: 399 W
Idle power: 175 W
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
|
| Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions |
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR 22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
|
| Management |
IMC - Intelligent Management Center; Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP |
Cac loai Module quang HPE duoc su dung cho switch HPE JG726A:
JG661A HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver
JG325B HPE X140 40G QSFP+ MPO SR4 Transceiver
JL251A HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver
JG709A HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver
JL286A HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver
JL306A HPE X140 40G QSFP+ LC ER4 40km SM Transceiver
Cac loai cable DAC HPE - Direct attack copper su dung cho switch HPE JG726A:
JG326A HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable
JG327A HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable
JG328A HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable
JG329A HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable
JG330A HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable
JG331A HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable
JL287A HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable
JL288A HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable
JL289A HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable
Cac loai nguon switch HPE su dung cho switch HPE JG726A:
JC680A HPE 58x0AF 650W AC Power Supply
JC681A HPE 58x0AF 650W DC Power Supply
Cac loai Fan Tray HPE su dung cho switch HPE JG726A:
JG552A HPE X711 Front (Port Side) to Back (Power Side) Airflow High Volume Fan Tray
JG553A HPE X712 Back (Power Side) to Front (Port Side) Airflow High Volume Fan Tray
Quy khach co the tham khao them cac dong switch HPE FlexFabric 5930 Switch Series:
JG726A HPE FlexFabric 5930 32QSFP+ Switch
JH179A HPE FlexFabric 5930 4-slot Switch
JH178A HPE FlexFabric 5930 2QSFP+ 2-slot Switch
